RTK GPS Navigation System
Integrate Koyth Robotics RTK GPS into your outdoor vehicle for enhanced precision navigation and reliable positioning capabilities.
- Dual Antenna solution for position and precise heading of the vehicle
- Can connect to Host device via Ethernet or RS232/serial
- ROS and bare Linux-compatible C/Python code for rapid deployment and quick start.
- +/- 8mm horizontal Accuracy
- +/- 15mm vertical Accuracy
- Full constellation coverage
- Direct Satelite correction inbuilt
- Cold start less than 30seconds
- Speed Accuracy less than 0.002m/s
- Heading Accuracy less than 0.15degree/baseline
- Roll or Pitch Accuracy less than 0.25degree/baseline
- Water and dust proof for outdoor Rugged use cases
- Optional CAN interface for motor and VCU control

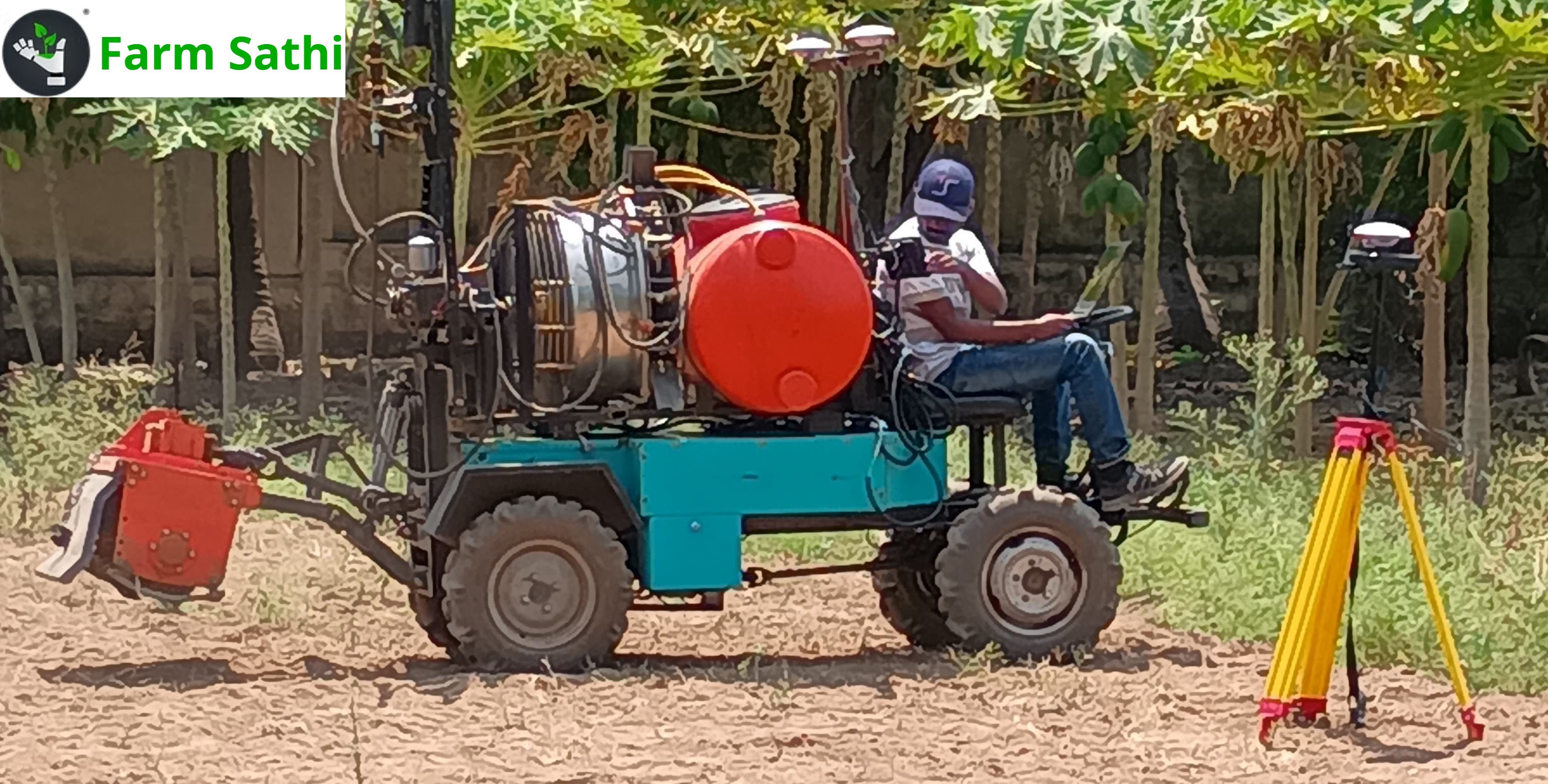

Deployed on Electric Tractor from Farm Sathi
Koyth Robotics Navigation unit integrated with Electric Tractor from Farm Sathi (Customized solution)
- Integrated with Autosteer solution
- Save path once and reuse throughout the season
- VCU Speed control based on the trajectory

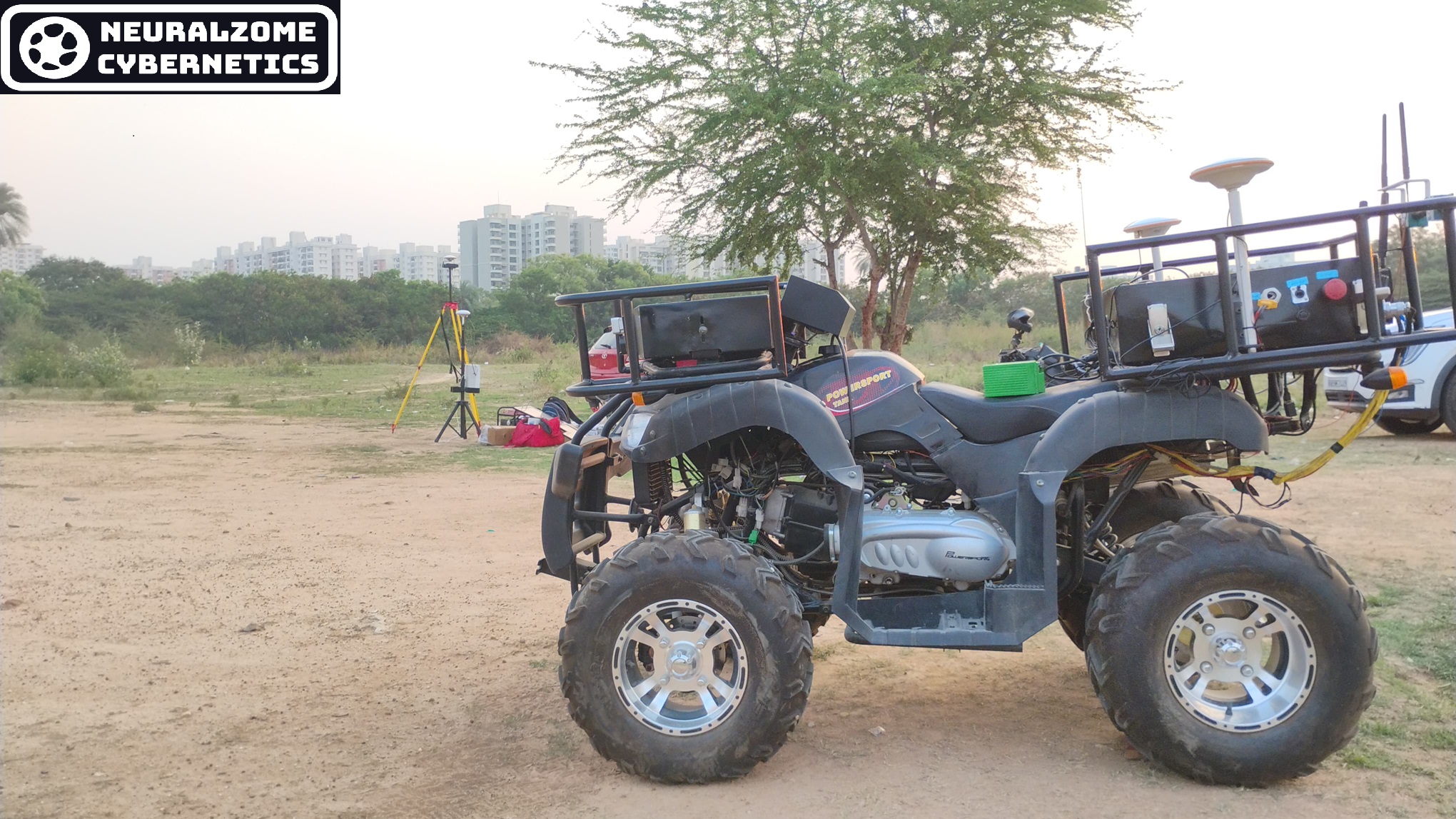

Deployed on Autonomous ATV from Neuralzome Cybernetics
RTK GPS unit integarted on Neuralzome Cybernetic's fully autonomous capable ATV that can be used for variety of use-cases such as soil sensing, agri-operations & Material Movement
